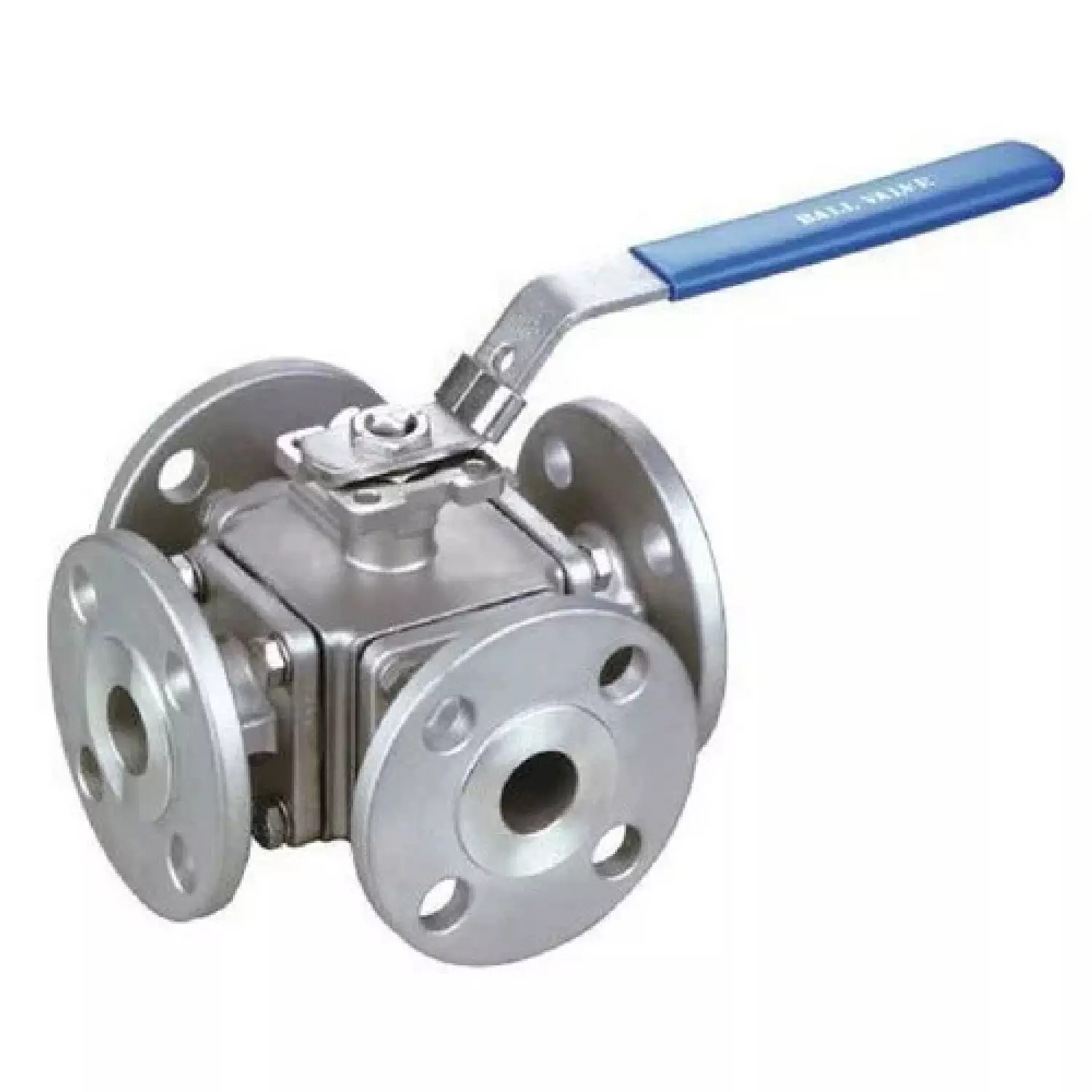

4 Way Flanged Ball Valve
4 Way Flanged Ball Valve Details
A four-way valve arrangement is selected when one valve body needs to manage a more specific piping route than a standard two-way connection. Our 4 Way Flanged Ball Valve is made from stainless steel with SS304 grade construction and a flanged-end connector. It is specified for water service, 300 mm size, and a pressure of 120 bar.
Designed for Multi-Port Flow Arrangement
The four-way configuration gives the piping system a different flow-routing option compared with a standard ball valve. The flanged-end connection suits installations where the valve is connected to a fixed pipeline through compatible flanges.
Stainless steel construction with SS304 grade is specified for the product. The polished surface finish gives the valve a clean external finish. For actual installation, the flow direction, port arrangement, pressure, water quality, temperature, and flange dimensions should be checked before selection.
Technical Details
| Parameter | Specification |
|---|---|
| Valve Type | 4 Way Flanged Ball Valve |
| Material | Stainless Steel |
| Steel Grade | SS304 |
| Size | 300 mm |
| Connector Type | Flanged End |
| Pressure | 120 bar |
| Media | Water |
| Surface Finish | Polished |
| Brand | R. B. Enterprise |
Key Product Features
- Four-way ball valve configuration
- Stainless steel construction
- SS304 steel grade
- 300 mm valve size
- Flanged-end connection
- Specified for water service
- 120 bar pressure specification
- Polished surface finish
Flange and Port Details Need to Match
A large 300 mm valve needs proper attention during installation. The mating flange dimensions, bolt pattern, gasket selection, pipe alignment, and available space should be confirmed before installation. With a four-way valve, the port arrangement also needs to be understood clearly so the valve is installed according to the intended flow path.
The stated pressure is 120 bar, so the complete piping system and connected components should be rated appropriately for the operating condition. Actual water temperature and service conditions should also be considered during selection.
For Water Piping With a Specific Flow Layout
We manufacture 4 Way Flanged Ball Valve in Ahmedabad, Gujarat, with stainless steel SS304 construction, 300 mm size, flanged-end connection, and polished surface finish. The specified service is water at a pressure of 120 bar. Share your pipeline layout, flange details, operating pressure, temperature, and quantity with us for the relevant product and supply information.
