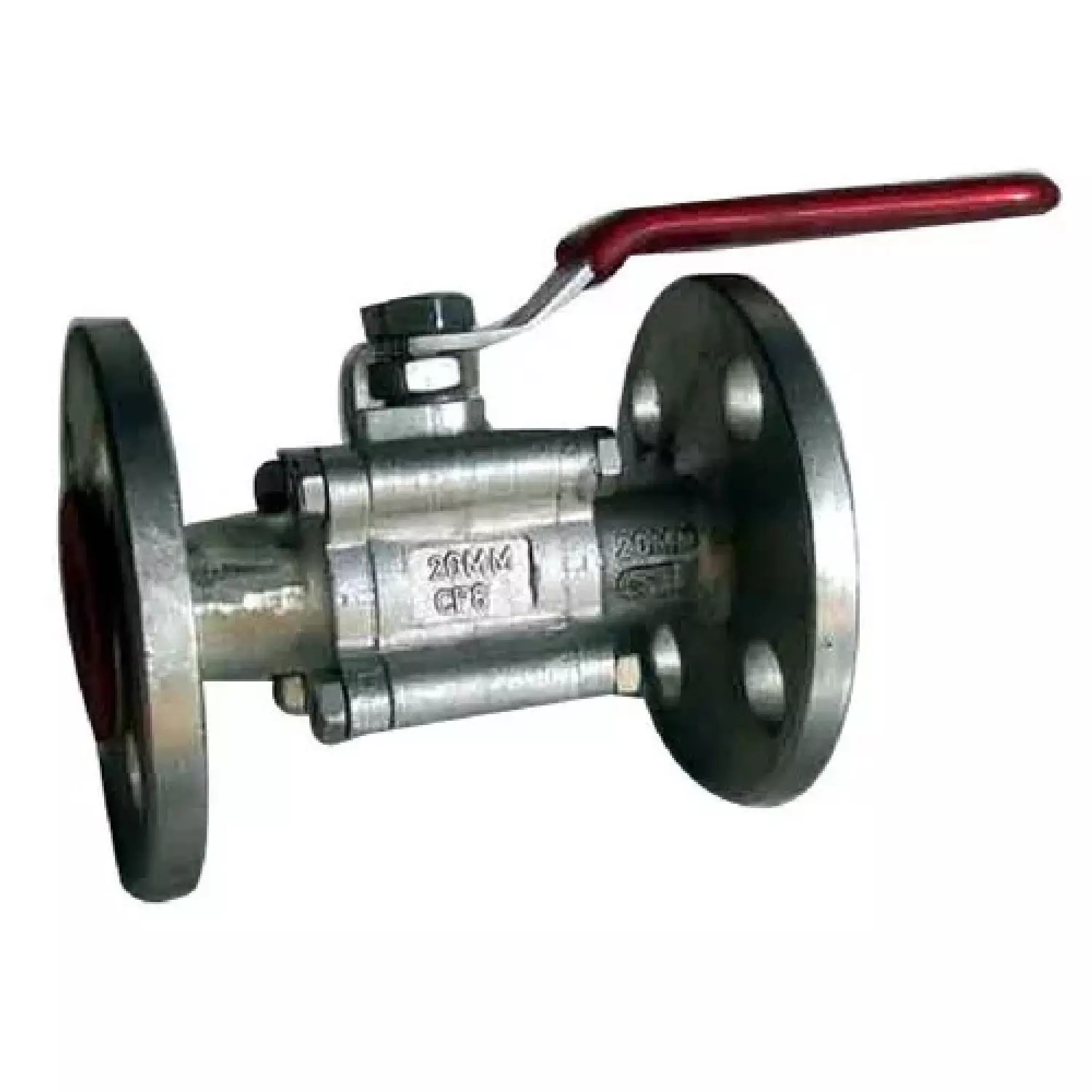

Flanged End Ball Valve
Flanged End Ball Valve Details
Flanged connections are often selected when a valve needs to be integrated into a fixed industrial pipeline with a defined bolted connection. Our Flanged End Ball Valve is available in sizes from 1/2" to 8" and is designed in a three-piece flange-end configuration. We manufacture this range in Ahmedabad for piping requirements across different industries.
Three-Piece Construction with Flanged Ends
The three-piece flange-end design gives the valve a practical construction for industrial installation and service. Flanged ends provide a clear connection arrangement for compatible pipeline flanges. Before selection, the flange dimensions and mating pipe arrangement should be checked so the valve fits the intended system.
The valve is available in SS, CI, and CS material options, with SS304 specified as the steel grade. Material selection should be based on the fluid, temperature, pressure, and service conditions of the pipeline. A polished surface finish provides a clean appearance for the valve body.
Product Specification
| Parameter | Specification |
|---|---|
| Product Type | Flanged End Ball Valve |
| Material | SS / CI / CS |
| Design | 3 Piece Flange End |
| Steel Grade | SS304 |
| Size Range | 1/2" to 8" |
| Application | All Industries |
| Surface Finish | Polished |
| Brand | RB |
Size Options for Different Pipeline Layouts
The 1/2" to 8" size range covers different industrial pipeline requirements. Smaller sizes can be specified for compact lines, while larger sizes suit higher-capacity piping arrangements. The valve size should always be matched with the actual pipe size and required flow arrangement rather than selected only from the available range.
Material Options at a Glance
- Stainless steel construction option
- SS304 grade specification
- Cast iron material option
- Carbon steel material option
- Three-piece flange-end design
- Sizes from 1/2" to 8"
- Polished surface finish
- Suitable for varied industrial applications
Flange Matching Matters
A flanged valve works as part of a complete piping connection, so the valve flange and mating flange need to be compatible. Bolt arrangement, dimensions, gasket selection, pipe size, and operating conditions should be checked before installation. Material compatibility is also important when the valve will handle different process media.
We manufacture Flanged End Ball Valve in Ahmedabad, Gujarat, with three-piece flange-end construction and sizes from 1/2" to 8". SS, CI, and CS material options are available, with SS304 specified for the stainless steel grade. Share your required size, material, application, and quantity with us, and we can provide the relevant valve configuration for your project.
