SS 304 Camlock Coupling
SS 304 Camlock Coupling Details

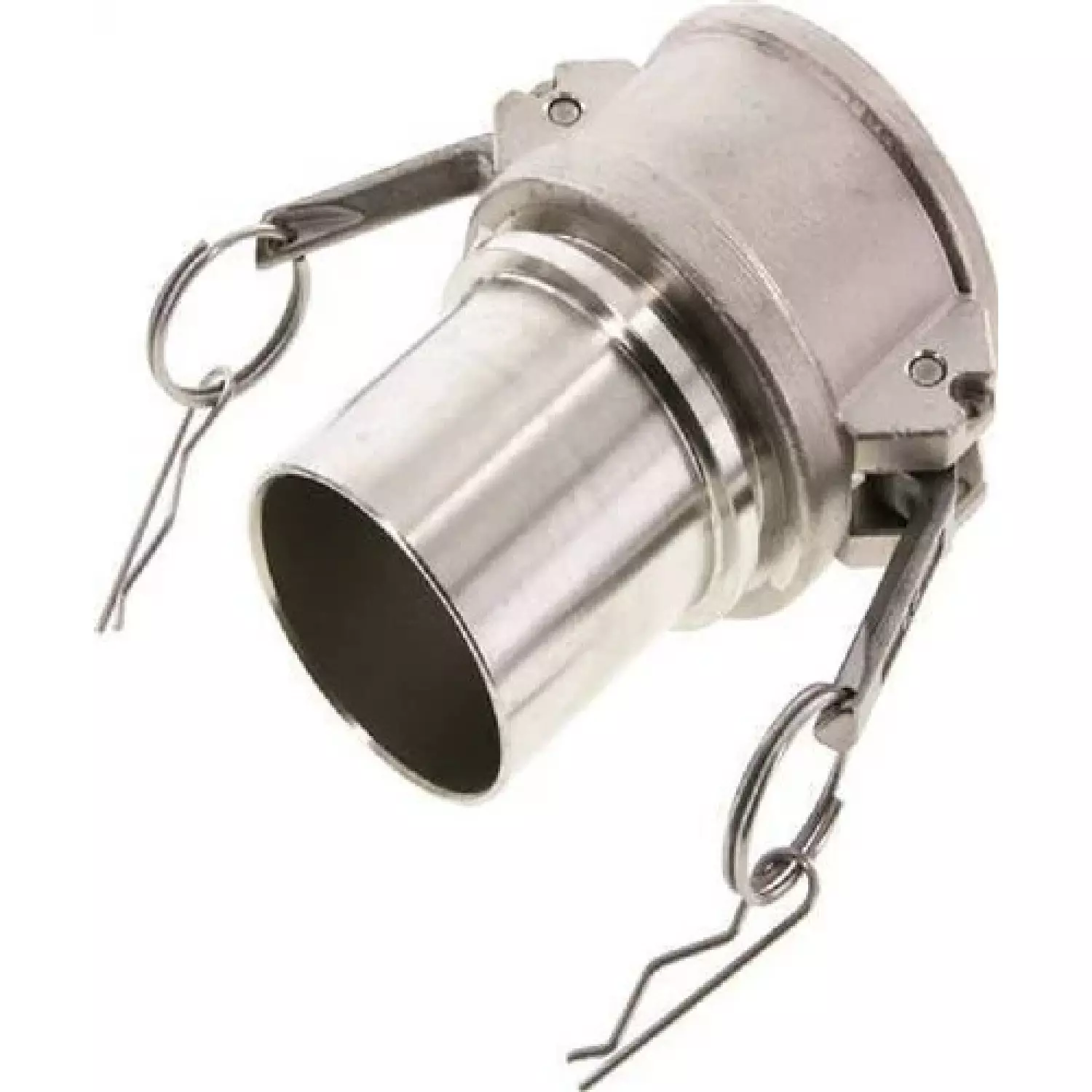

When the mating side of a camlock connection needs a male threaded arrangement, the coupling specification has to be clear from the beginning. Our SS 304 Camlock Coupling is designed in Type B configuration with a male thread connection. We manufacture this product in Ahmedabad in a 6-inch size for structure pipe applications, with a 16 bar pressure rating.
Type B Arrangement with Male Thread
The Type B configuration is suitable where the camlock side needs to connect with a compatible male threaded arrangement. The coupling is made from stainless steel and has an NBR seal for the specified sealing requirement. BSPT is provided as the thread standard, so the mating component should have a matching thread specification before installation.
The coupling has a round shape with an electroplated silver finish and polished surface. It is supplied in box packaging for convenient storage and handling during project work.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | SS 304 Camlock Coupling |
| Size | 6 inch |
| Material | Stainless Steel |
| Coupling Type | Type B |
| Application | Structure Pipe |
| Pressure Rating | 16 bar |
| Seal Material | NBR |
| Connection Type | Male Thread |
| Thread Standard | BSPT |
| Finish | Electroplated |
| Color | Silver |
| Finishing | Polished |
| Shape | Round |
| Packaging Type | Box |
Thread and Seal Selection in Focus
The BSPT male thread is a key part of this configuration. Correct thread matching is necessary for proper assembly, so the mating connection should be checked before ordering. The NBR seal is also part of the product specification and should be considered along with the operating medium, temperature, and pressure conditions.
Product Features
- Stainless steel construction
- SS 304 camlock configuration
- Type B coupling arrangement
- 6-inch size
- Male BSPT threaded connection
- 16 bar pressure rating
- NBR seal material
- Electroplated silver finish
- Polished surface
- Round shape and box packaging
Before the Coupling Goes Into Service
For a 6-inch connection, dimensional compatibility should be confirmed before installation. The BSPT thread, mating component, seal arrangement, and working pressure should all match the intended piping system. Proper assembly also helps avoid unnecessary stress on the connection during operation.
We manufacture SS 304 Camlock Coupling in Ahmedabad, Gujarat, for structure pipe requirements needing a Type B connection with a male BSPT thread. Share your quantity, mating connection details, and application conditions with us, and we can provide the relevant product and supply information.
