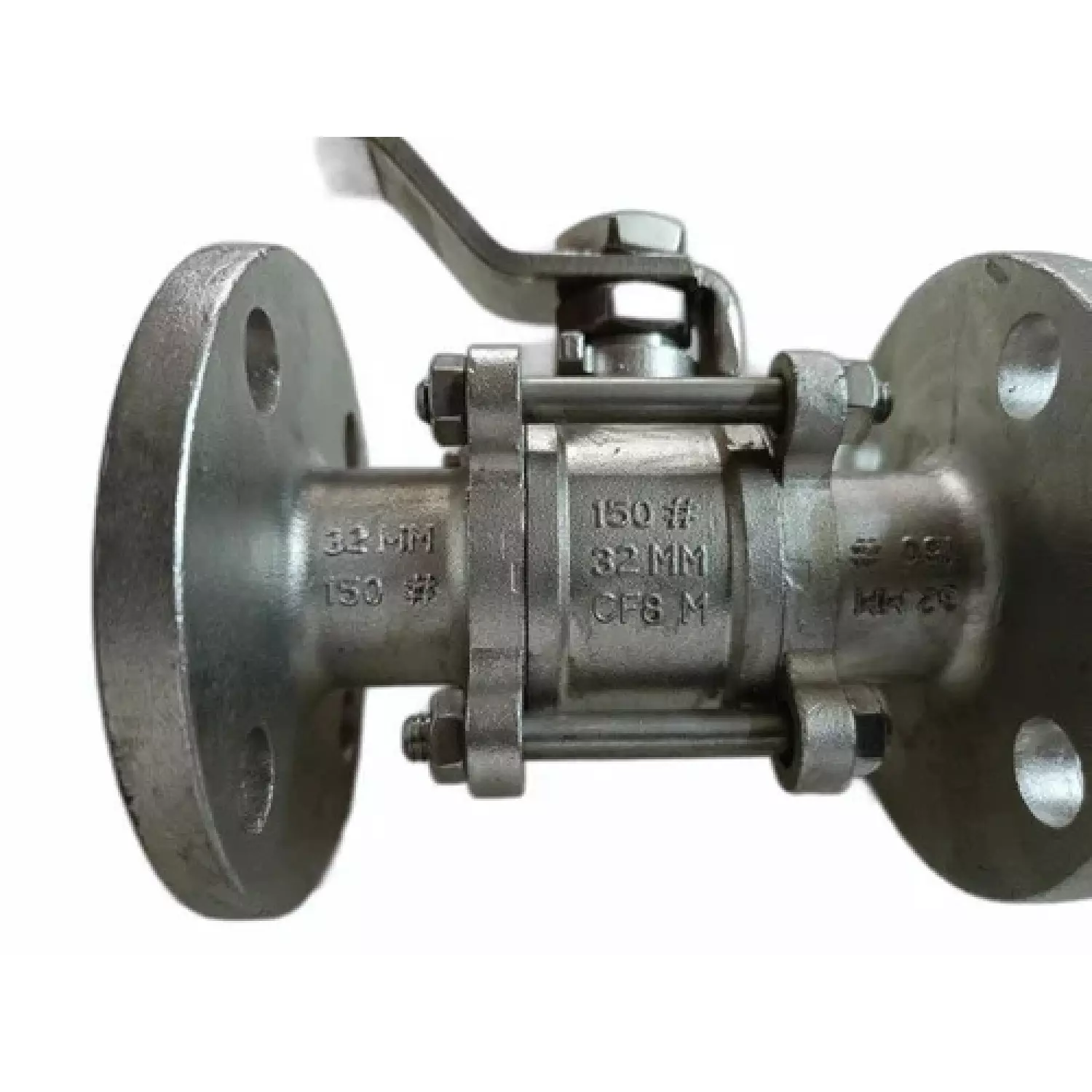

SS Flange End Ball Valve
SS Flange End Ball Valve Details
When a valve has to be fitted into a flanged pipeline, the end connection and flange arrangement matter as much as the valve body. Our SS Flange End Ball Valve is designed with a 3-piece construction, full-bore passage, lever operation, and flange-end connection. The specified pressure class is Class 150, with PTFE seat and Stainless Steel 304 ball construction.
A Flanged Arrangement for Fixed Piping
The flange-end design suits piping systems where the valve needs to be connected through flanges rather than threaded ends. Its 3-piece construction provides a practical body arrangement for maintenance access. The full-bore design is specified for applications where a larger internal flow passage is preferred.
The valve is lever operated, keeping the operating arrangement direct. Stainless steel is specified for the body, while the product details also list cast iron under material. The exact material configuration should be confirmed against the required supply specification before ordering.
Technical Specification
| Parameter | Specification |
|---|---|
| Product Type | SS Flange End Ball Valve |
| Size | 15 mm (0.5 inch) |
| Body Material | Stainless Steel (SS) |
| Pressure Class | Class 150 |
| Valve Design | 3-Piece |
| Bore Type | Full Bore |
| Operation | Lever Operated |
| End Connection | Flange End |
| Material | Stainless Steel, Cast Iron |
| Port Size | 1 Inch |
| Seat Material | PTFE |
| Ball Material | Stainless Steel 304 |
| Temperature | 150°C |
| Finish | Polished |
| Brand | R. B. Enterprise |
Features That Matter During Installation
- 3-piece valve design
- Full-bore flow passage
- Flange-end connection
- Class 150 pressure class
- Lever-operated mechanism
- PTFE seat material
- SS 304 ball material
- Polished surface finish
- Specified temperature up to 150°C
Match the Valve With the Pipeline
Flange dimensions, nominal pipe size, pressure class, gasket arrangement, bolt pattern, media, and temperature should be checked before installation. The listed size is 15 mm (0.5 inch), while the port size is stated as 1 inch, so these dimensions should be clarified at the enquiry stage to avoid an incorrect selection.
We manufacture SS Flange End Ball Valve in Ahmedabad, Gujarat, with a 3-piece design, full bore, lever operation, flange-end connection, PTFE seat, and SS 304 ball. The specified pressure class is Class 150 and operating temperature is 150°C. Share your piping size, flange details, service media, pressure, temperature, and quantity with us for the relevant supply details.
