Grooved Pipe Elbows
Grooved Pipe Elbows Details

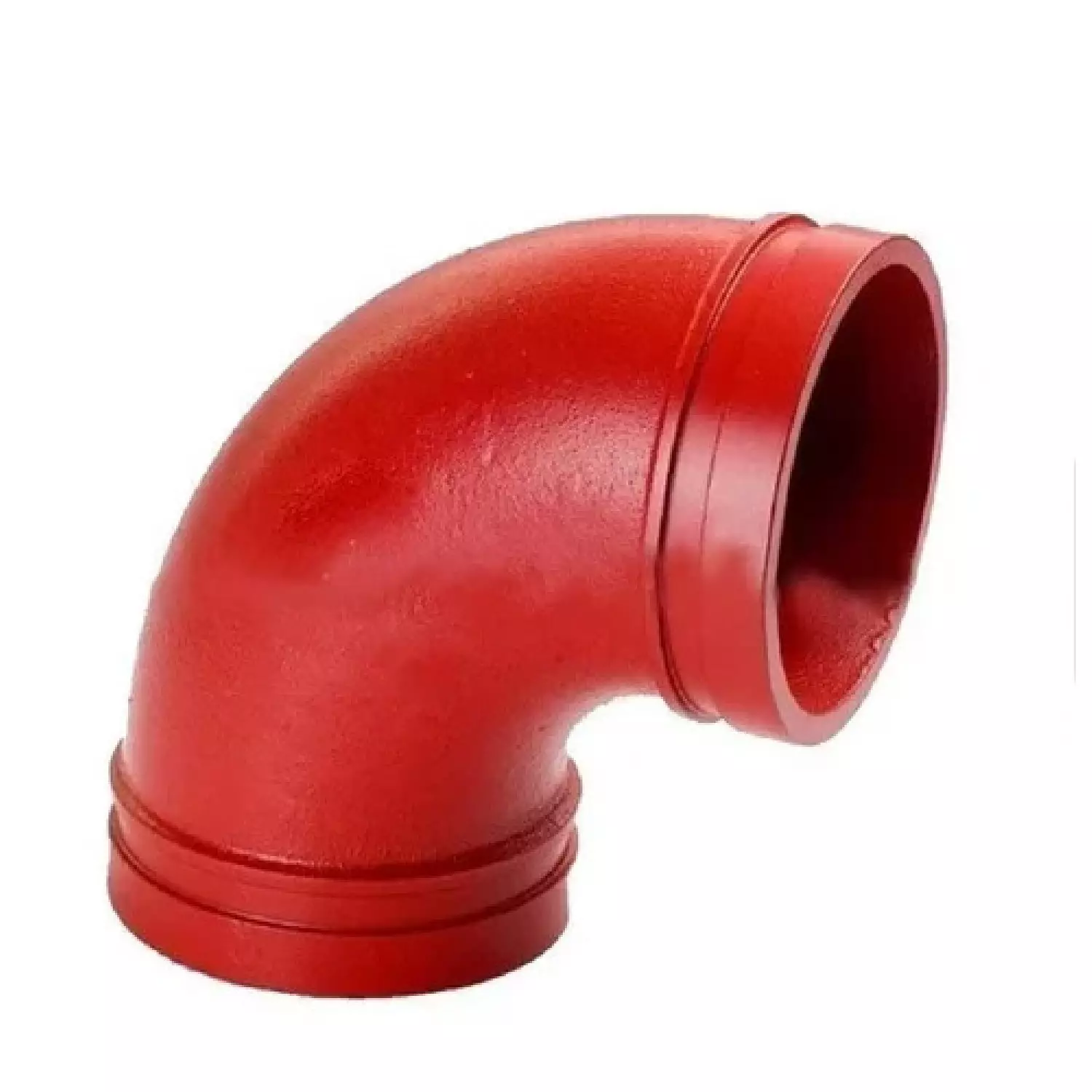

Every well-planned piping system needs accurate directional changes to follow the available layout without creating unnecessary complexity. Our Grooved Pipe Elbows are developed for this purpose, providing a 90-degree change of direction with a grooved fitting arrangement. Manufactured in Ahmedabad, Gujarat, this 2-inch configuration is suited to plumbing and industrial piping applications where practical mechanical joining and dependable routing are important.
90-Degree Routing for Compact Piping Layouts
The 90-degree elbow redirects the pipeline through a right-angle turn, making it useful around equipment, structural elements, and installation constraints. Its grooved fitting design is intended for compatible grooved piping systems, offering a mechanical connection approach that can simplify assembly and provide convenient access during maintenance activities.
Application-Focused Mild Steel Construction
Manufactured from mild steel, the fitting is specified for a range of service environments including HVAC, fire fighting, water supply, industrial piping, and plumbing pipe installations. It is also listed for chemical fertilizer pipe applications. The red-painted coating provides the specified external finish, while the hot-rolled manufacturing technique supports the stated product construction.
Technical Specification
| Parameter | Specification |
|---|---|
| Fitting Type | Grooved Elbow |
| Nominal Size | 2 inch |
| Material | Mild Steel |
| Elbow Bend Angle | 90 Degree |
| Pressure Rating | 150 psi |
| Temperature | 150°C |
| Technique | Hot Rolled |
| Coating / Finish | Red Painted / Coated |
| Head Code | Round |
| Brand | R. B. Enterprise |
Suitable Across Multiple Piping Requirements
The fitting's combination of 2-inch size, grooved connection format, and 90-degree geometry makes it useful for installations requiring an organized directional route. It can be considered for HVAC layouts, fire-fighting piping, water-supply networks, plumbing systems, industrial piping, and specified chemical fertilizer applications. The stated pressure and temperature ratings should always be evaluated against the actual conditions of the intended system.
Important Points for Proper Selection
For successful installation, compatibility between the elbow, pipe dimensions, groove specifications, joining components, pressure conditions, temperature, and media should be verified. Correct dimensional matching helps maintain the integrity of the complete piping assembly and reduces installation-related complications.
For Grooved Pipe Elbows in Ahmedabad, Gujarat, contact R. B. Enterprise with your pipe size, service conditions, and application details. Our team can help you review the relevant product specifications for your piping requirement.
