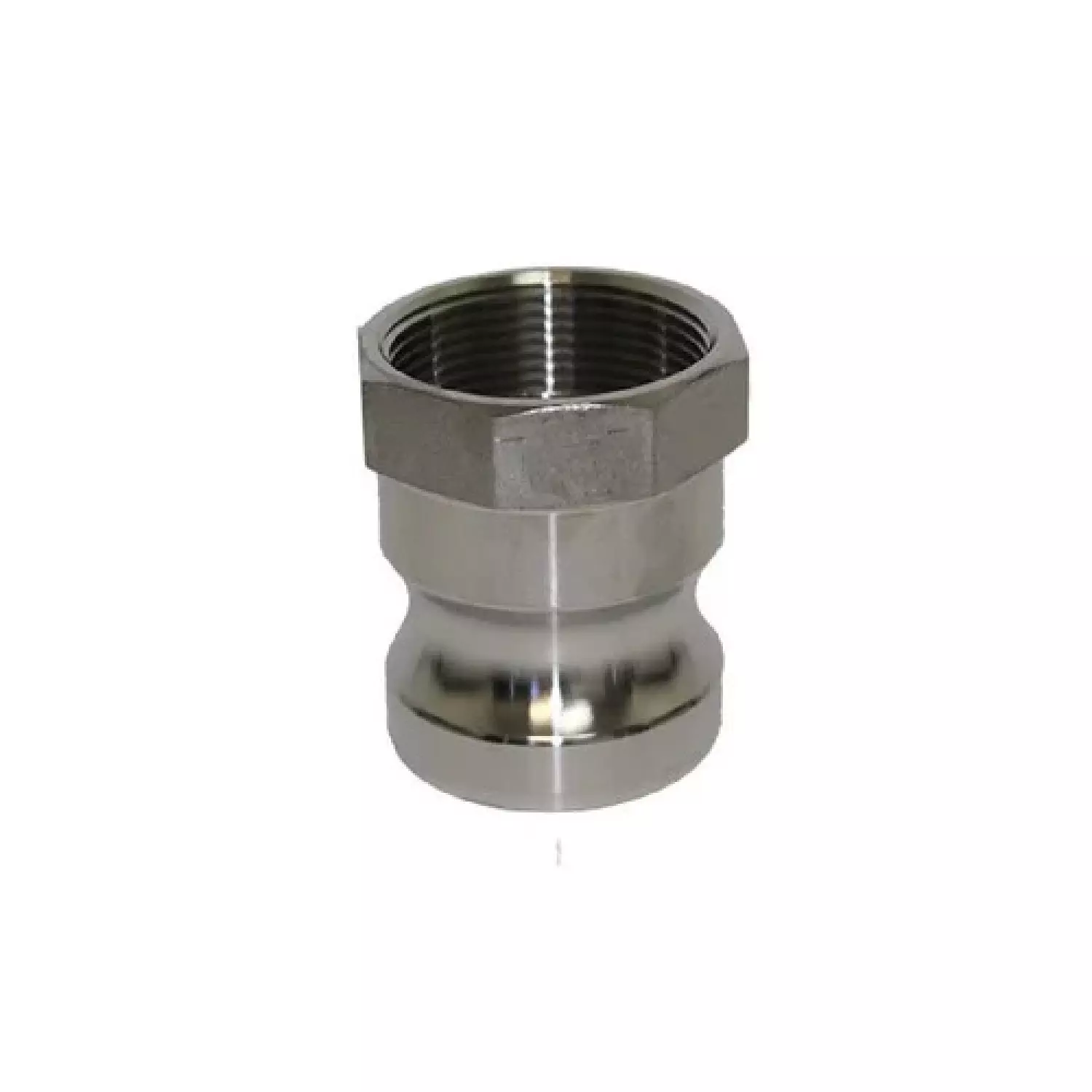

Type A Camlock Coupling
Type A Camlock Coupling Details
Frequent connection work becomes easier when the fitting can be handled without repeated threading at the main coupling point. Our Type A Camlock Coupling is made for this type of requirement, with a stainless steel body, female threaded connection, and a practical cam-operated arrangement. We manufacture this coupling in Ahmedabad for structure pipe applications, with sizes from 1/2" to 6".
Stainless Steel Construction with Type A Design
The Type A configuration combines a camlock connection with a female threaded end. We use stainless steel for the coupling and cam, while an NBR seal is provided for the specified sealing arrangement. The round body and polished surface give the product a clean finished appearance.
The coupling is available with BSPT and NPT thread standards. This is important when the coupling is being connected to a threaded component, since the thread standard must match the mating connection. We also provide an electroplated finish in silver colour.
Technical Details
| Parameter | Specification |
|---|---|
| Material | Stainless Steel |
| Coupling Type | Type A |
| Size Range | 1/2" to 6" |
| Application | Structure Pipe |
| Pressure Rating | 16 bar |
| Seal Material | NBR |
| Connection Type | Female Thread |
| Thread Standard | BSPT / NPT |
| Cam Material | Stainless Steel |
| Finish | Electroplated |
| Color | Silver |
| Shape | Round |
| Finishing | Polished |
Thread Standard Makes a Difference
BSPT and NPT are provided as thread options for this Type A Camlock Coupling. The selected thread should match the mating connection to avoid fitment problems during installation. The 16 bar pressure rating should also be considered with the complete piping arrangement and actual operating conditions.
Practical Features
- Stainless steel body and cam
- Type A camlock configuration
- Female threaded connection
- BSPT and NPT thread options
- 1/2" to 6" size range
- NBR seal material
- 16 bar pressure rating
- Electroplated silver finish
- Round body with polished finishing
Made in Ahmedabad for Specified Requirements
We manufacture Type A Camlock Coupling in Ahmedabad, Gujarat, with attention to thread accuracy, cam fitment, sealing arrangement, surface finish, and overall dimensions. The product is suited for customers looking for a stainless steel Type A coupling with a female threaded connection. Share the required size, BSPT or NPT thread, quantity, and application details with us, and we can provide the appropriate product specification and supply details.
