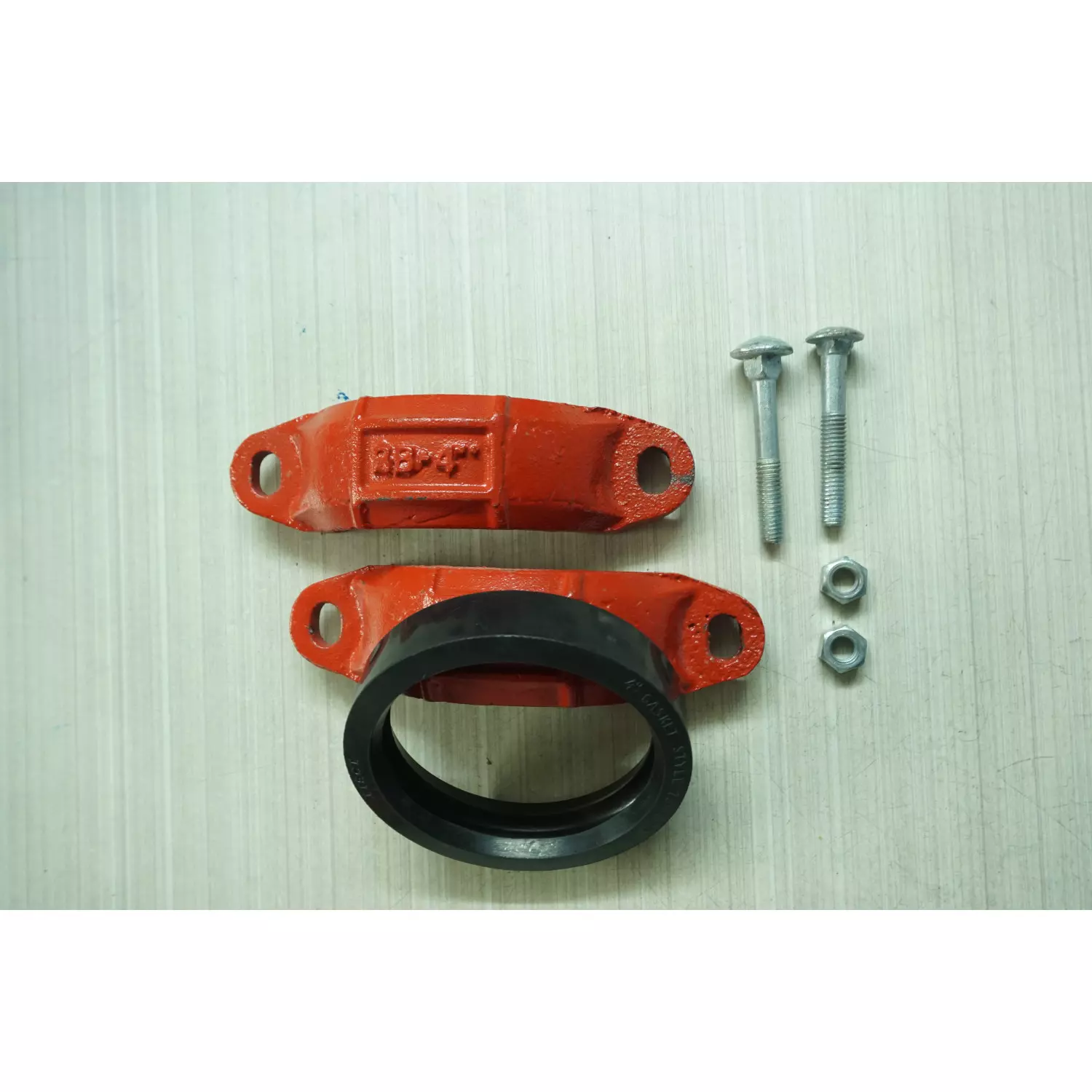

VICTAULIC TYPE COUPLING
VICTAULIC TYPE COUPLING Details
Some piping projects need a joining arrangement that is quick to assemble but still keeps the connected pipes firmly positioned. Our Victaulic Type Coupling is designed around this requirement, with a rigid construction and grooved end connection. We manufacture this coupling in Ahmedabad in sizes from 1/2" to 22" for structure pipe applications.
Rigid Construction for Stable Pipe Joining
The coupling is made from SGI / DI material and has a round body. Its grooved connection is suitable for compatible grooved pipe ends, while the rigid design is intended for applications where unwanted pipe movement needs to be limited. The broad size range allows the same coupling type to be specified for different pipe dimensions.
We offer pressure ratings of 300 PSI, 600 PSI, and 1200 PSI. Gasket options include EPDM, VITON, and SILICON. The coupling is powder coated in red and supplied with zinc-plated fasteners. The surface is polished for a finished appearance.
Technical Specification
| Parameter | Specification |
|---|---|
| Coupling Type | Rigid |
| Size Range | 1/2" to 22" |
| Material | SGI / DI |
| Material Grades | CF8 / CF8M / DUPLEX |
| Application | Structure Pipe |
| Pressure Rating | 300 PSI / 600 PSI / 1200 PSI |
| Gasket Material | EPDM / VITON / SILICON |
| End Connection | Grooved |
| Shape | Round |
| Fastener Material | Zinc Plated |
| Coating | Powder Coated |
| Color | Red |
| Surface Finish | Polished |
Sealing and Pressure Choices
Pressure conditions and gasket selection need to be considered together. We provide the coupling in 300 PSI, 600 PSI, and 1200 PSI ratings, while EPDM, VITON, and SILICON gasket materials are available for specified service conditions. The selected configuration should match the actual working pressure, medium, and temperature of the pipeline.
Product Features
- Rigid construction for fixed pipe positioning
- SGI / DI material construction
- Size range from 1/2" to 22"
- Grooved end connection
- Round body design
- 300 PSI, 600 PSI, and 1200 PSI pressure options
- EPDM, VITON, and SILICON gasket choices
- Zinc-plated fasteners
- Red powder-coated finish
Manufactured in Ahmedabad for Structural Pipe Requirements
We manufacture Victaulic Type Coupling in Ahmedabad, Gujarat, for customers requiring rigid grooved connections for structure pipe applications. We focus on dimensions, groove profile, coating, surface finish, and component fitment during production. Share your required pipe size, pressure rating, gasket material, and quantity with us. We can provide the suitable configuration and supply details for your requirement.
