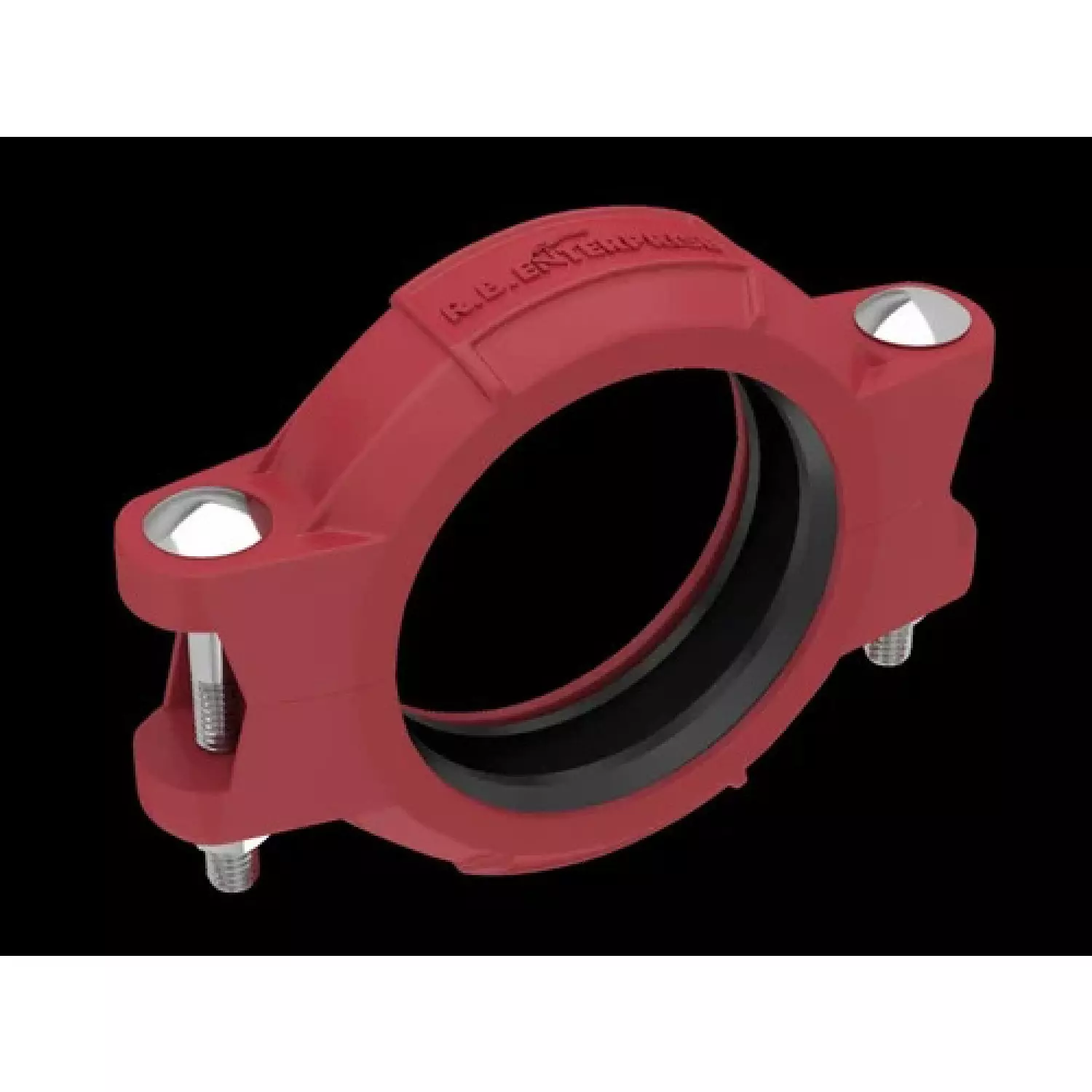

Grooved Rigid Coupling
Grooved Rigid Coupling Details
Pipe movement can become a problem when a connection is expected to stay fixed after installation. Our Grooved Rigid Coupling is made for such requirements, where the joint needs firm positioning rather than flexibility. We manufacture this coupling in Ahmedabad with a round construction, grooved end connection, and size availability from 1/2" to 22".
A Fixed Connection for Structural Pipe Systems
The coupling is manufactured in SGI / DI material and is designed as a rigid type. It is suitable for structure pipe applications where the connected pipe sections need to stay aligned. The grooved connection also makes the assembly method practical for compatible grooved pipe ends.
We provide 300 PSI, 600 PSI, and 1200 PSI pressure rating options. Gasket selection can be made from EPDM, VITON, and SILICON according to the service requirement. The coupling is powder coated in red and has a polished surface finish.
Specification Table
| Parameter | Specification |
|---|---|
| Coupling Type | Rigid |
| Size Range | 1/2" to 22" |
| Material | SGI / DI |
| Material Grades | CF8 / CF8M / DUPLEX |
| Application | Structure Pipe |
| Pressure Rating | 300 PSI / 600 PSI / 1200 PSI |
| Gasket Material | EPDM / VITON / SILICON |
| End Connection | Grooved |
| Fastener Material | Zinc Plated |
| Shape | Round |
| Coating | Powder Coated |
| Color | Red |
| Surface Finish | Polished |
Options for Different Line Conditions
The broad size range helps cover different structural pipe requirements. Pressure rating should be selected according to the working conditions of the line. Gasket material also needs attention. EPDM, VITON, and SILICON have different service characteristics, so the correct option should be specified before ordering.
Points That Matter During Installation
- Confirm the pipe size before selecting the coupling.
- Check the groove dimensions and pipe-end condition.
- Select the gasket material according to service conditions.
- Match the coupling pressure rating with the working requirement.
- Align the pipe sections correctly before fastening.
- Check the zinc-plated fasteners during final assembly.
Manufacturing and Supply from Ahmedabad
We manufacture Grooved Rigid Coupling in Ahmedabad, Gujarat, for structure pipe applications requiring a fixed grooved connection. We focus on dimensions, groove profile, coating, surface finish, and overall workmanship during production. Share your required size, pressure rating, gasket type, and quantity with us, and we can provide the appropriate specification and supply details.
