Stainless Steel Gate Valve
Stainless Steel Gate Valve Details

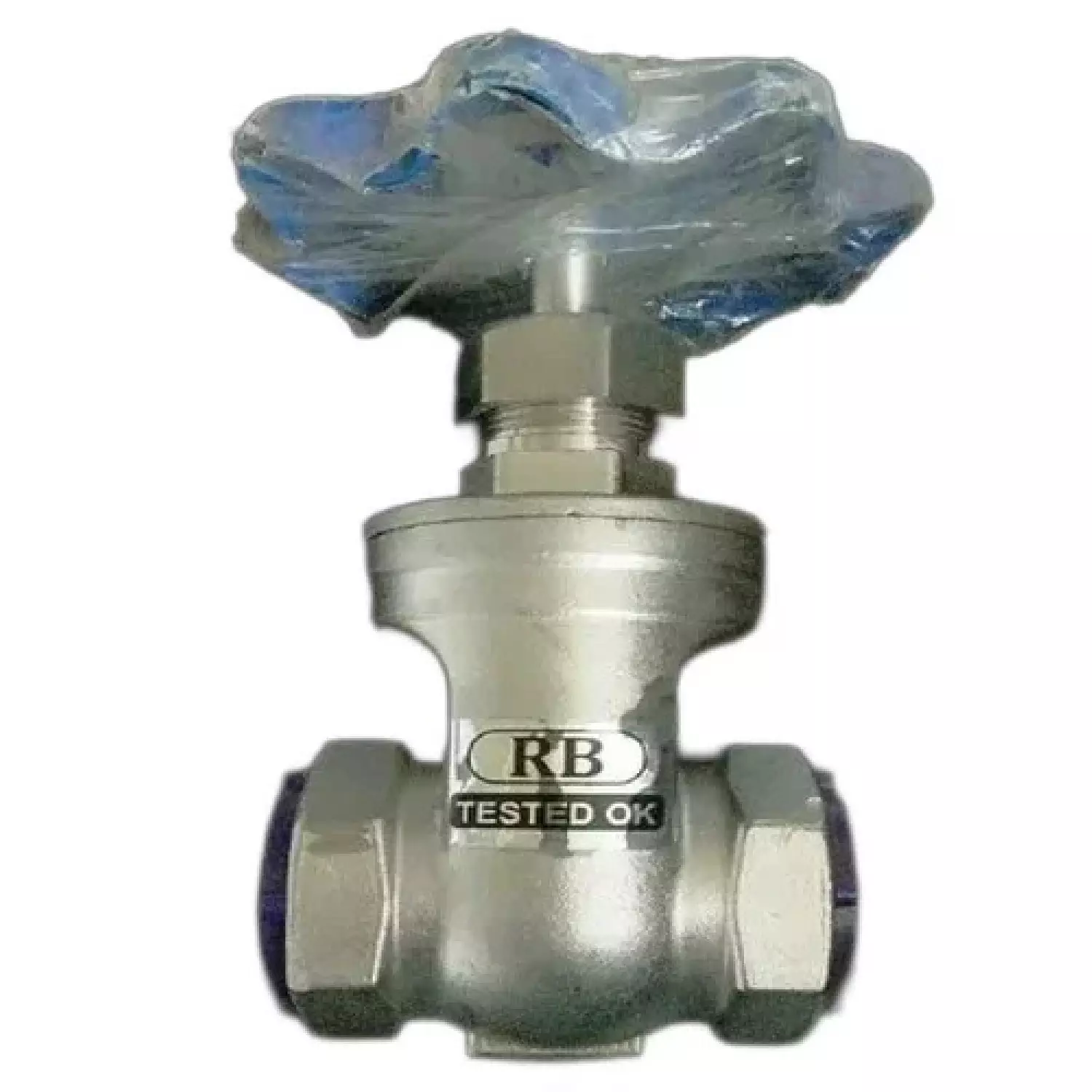

For a small water line, valve selection needs to stay simple and match the actual pipe connection. Our Stainless Steel Gate Valve is a 20 mm manually operated gate valve with CF8 grade construction and a working pressure of 300 PSI. We manufacture this valve in Ahmedabad for water media and installations using BSP or NPT threaded connections.
Compact Gate Valve for Water Lines
The 20 mm size makes this valve suitable for compact piping arrangements where a gate valve is required. Manual operation keeps the arrangement straightforward, without the need for an external automation system. The valve is specified for water service at medium media temperature.
The end connection is available in BSP or NPT thread configuration. The required thread should be confirmed against the mating pipe or fitting before ordering. CF8 is the specified material grade for this valve.
Technical Details
| Parameter | Specification |
|---|---|
| Valve Size | 20 mm |
| Valve Type | Gate Valve |
| Material Grade | CF8 |
| Media | Water |
| End Connection | BSP or NPT Thread |
| Working Pressure | 300 PSI |
| Automation Grade | Manual |
| Media Temperature | Medium Temperature |
| Corrosion Resistance | Specified as Non Corrosion Resistant |
| Packaging | Poly Bag |
| Brand | R. B. Enterprise |
Threaded Connection for Easier Specification
The BSP or NPT threaded connection gives two defined options for matching the valve with the existing piping. These thread standards shouldn't be mixed during installation. The pipe thread, valve thread, sealing method, and available installation space should be checked before assembly.
Product Features
- 20 mm gate valve size
- CF8 material grade
- Manual operation
- 300 PSI working pressure
- Designed for water media
- BSP or NPT threaded end connection
- Medium-temperature service specification
- Poly bag packaging
Check the Service Conditions Before Ordering
The supplied specification identifies this valve for water service and states non corrosion resistant under the corrosion-resistance parameter. For this reason, the actual water quality, installation environment, temperature, and pressure should be considered before final selection. The 300 PSI working pressure should also be matched with the system requirement.
We manufacture Stainless Steel Gate Valve in Ahmedabad, Gujarat, with a 20 mm size, CF8 grade, manual operation, and BSP or NPT threaded connection. The valve is specified for water service at medium temperature and supplied in poly bag packaging. Share your required quantity, thread type, and installation details with us, and we can provide the relevant product and supply information.
