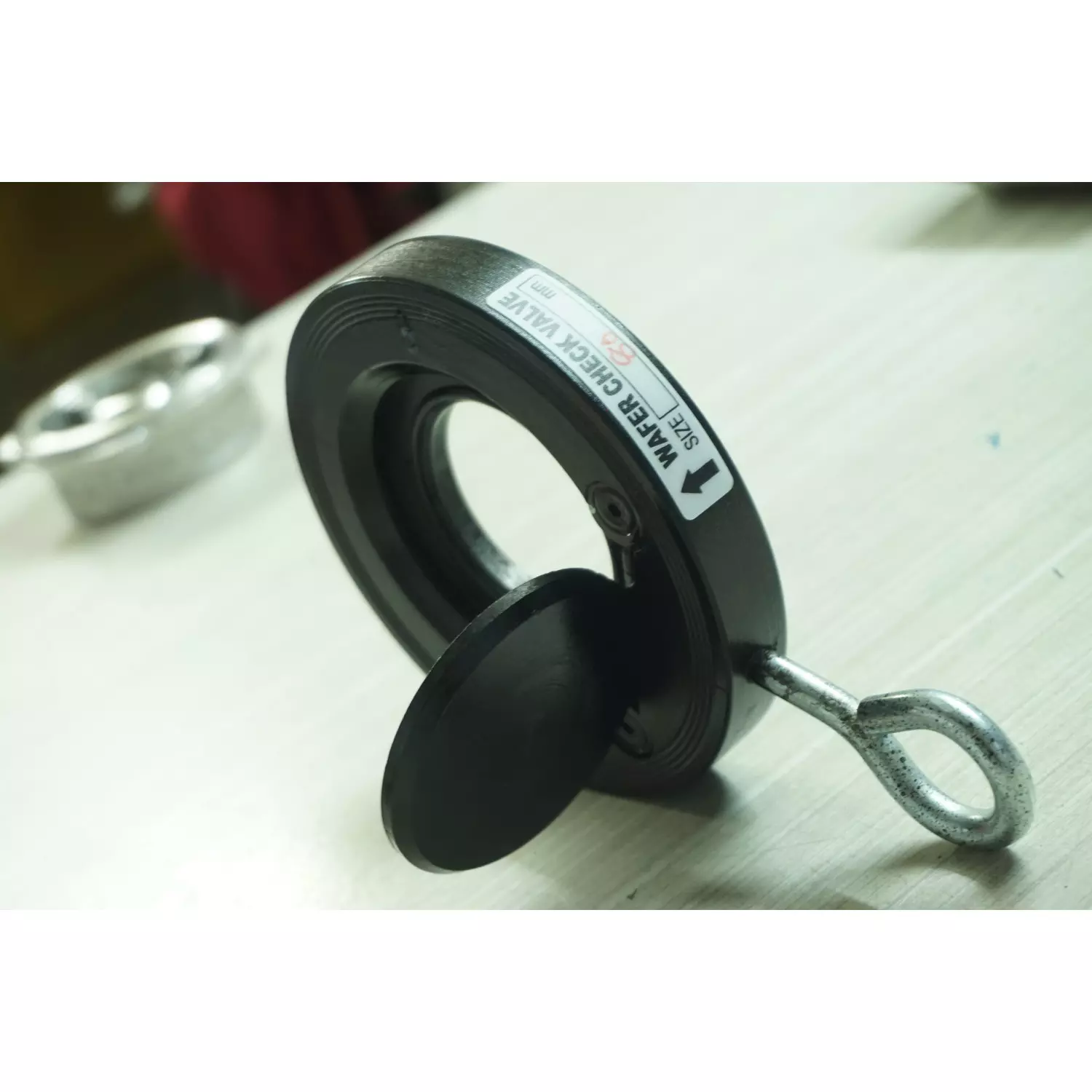

Wafer Type Check Valve
A wafer type check valve is a compact, lightweight, non-return valve designed to allow fluid flow in one direction and automatically prevent reverse flow. It is installed between two pipe flanges, making it suitable for systems where space and weight are important considerations.
Construction
A typical wafer type check valve consists of:
Valve body (wafer-shaped)
Disc or dual plates
Hinge pin
Spring mechanism (in spring-loaded designs)
Seat
Working Principle
When fluid flows in the intended direction, the disc or plates open due to flow pressure.
When flow stops or reverses, the spring and/or back pressure forces the disc to close.
The closed disc prevents backflow, protecting pumps, compressors, and other equipment.
Features
Compact and lightweight design
Easy installation between flanges
Low pressure drop
Quick closing action
Minimal maintenance requirements
Suitable for horizontal and vertical pipelines (depending on design)
Advantages
Saves installation space
Lower cost compared to larger swing check valves
Reduces water hammer effects in spring-assisted models
Available in various materials for different fluids and environments
Applications
Water supply systems
HVAC systems
Pump discharge lines
Chemical processing plants
Oil and gas pipelines
Fire protection systems
Wastewater treatment plants
Types of Wafer Check Valves
Single Disc Wafer Check Valve
Dual Plate (Double Door) Wafer Check Valve
Spring-Loaded Wafer Check Valve
Silent Check Valve
Materials Commonly Used
Cast Iron
Ductile Iron
Carbon Steel
Stainless Steel
Bronze
Conclusion
A wafer type check valve is an efficient and economical solution for preventing reverse flow in piping systems. Its compact design, ease of installation, and reliable operation make it widely used across water, industrial, HVAC, and process applications.
