Type A Camlock Coupling Supplier In Gujarat
Details of Type A Camlock Coupling

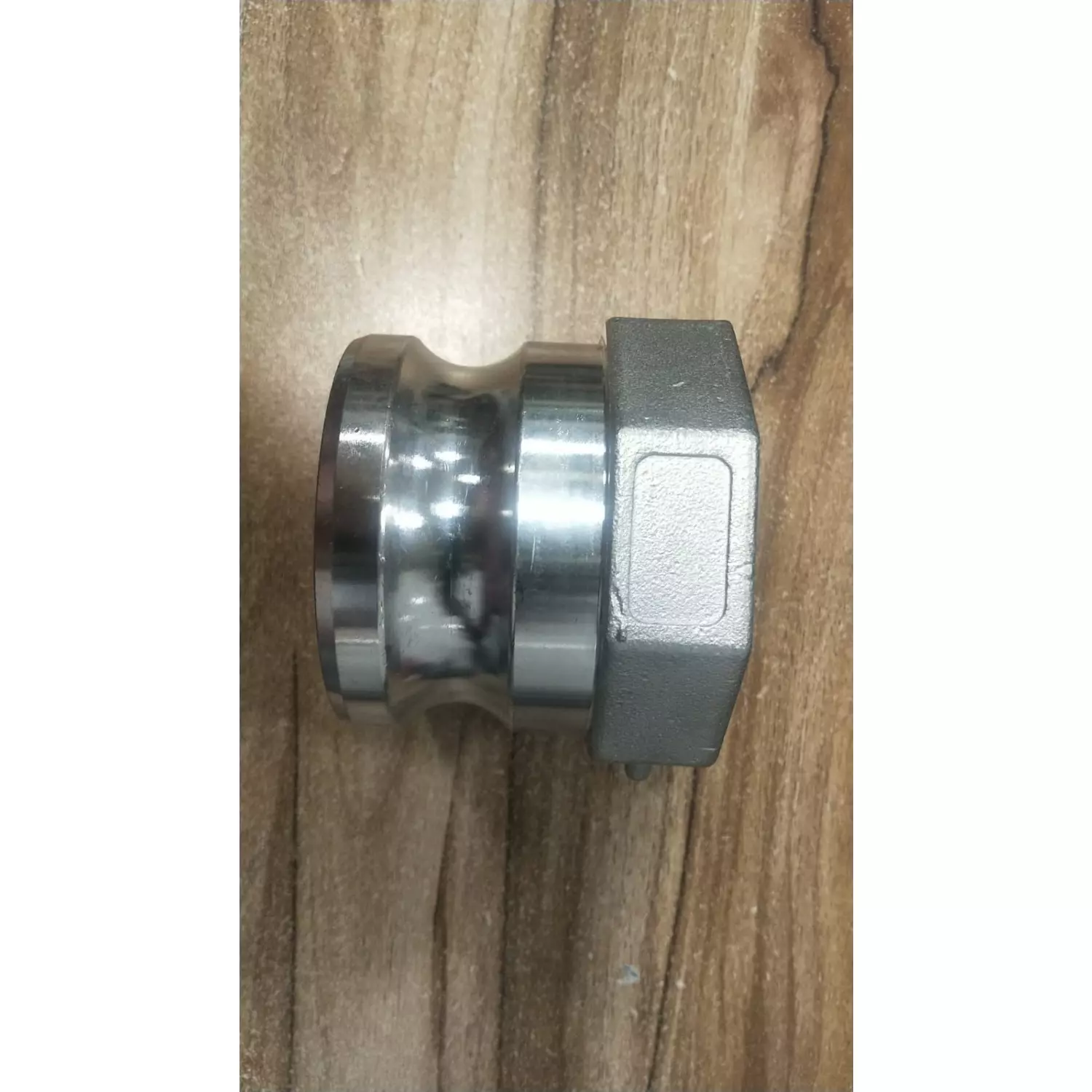

Stainless Steel Camlock Coupling Type A – Complete Information
What is a Type A Camlock Coupling?
A Type A Camlock Coupling is a quick-connect hose coupling consisting of:
A male camlock adapter (grooved adapter)
A female threaded connection (BSP or NPT)
Type A fittings are commonly used to connect hoses, pipes, tanks, pumps, and fluid transfer systems without requiring special tools.
Construction
A Type A camlock coupling has:
Male camlock adapter body
Female threaded end
Precision-machined sealing surface
Stainless steel construction for corrosion resistance
Connection Method
The male adapter connects to:
Type B couplers
Type C couplers
Type D couplers
Type DC dust caps
Material
Stainless Steel Grades
| Grade | Features |
|---|---|
| SS 304 | Good corrosion resistance, economical |
| SS 316 | Superior corrosion resistance, suitable for chemicals and marine environments |
| SS 316L | Low carbon version with enhanced weldability |
Typical Chemical Composition (SS 316)
| Element | Percentage |
|---|---|
| Chromium (Cr) | 16–18% |
| Nickel (Ni) | 10–14% |
| Molybdenum (Mo) | 2–3% |
| Carbon (C) | ≤ 0.08% |
| Iron (Fe) | Balance |
Available Sizes
Common sizes include:
| Size |
|---|
| 1/2" |
| 3/4" |
| 1" |
| 1-1/4" |
| 1-1/2" |
| 2" |
| 2-1/2" |
| 3" |
| 4" |
| 5" |
| 6" |
Thread Types
BSP Female Thread
BSPT Female Thread
NPT Female Thread
Selection depends on regional standards and application requirements.
Features
Quick connect and disconnect
No tools required
Leak-resistant sealing
Corrosion resistant
High mechanical strength
Reusable and easy maintenance
Suitable for harsh industrial environments
Technical Specifications
| Parameter | Typical Value |
|---|---|
| Material | SS304 / SS316 / SS316L |
| Size Range | 1/2" to 6" |
| Pressure Rating | Up to 250 PSI (depends on size) |
| Temperature Range | -20°C to +230°C |
| Connection Type | Female Thread × Male Camlock |
| Standard | MIL-C-27487 / A-A-59326 |
Applications
Chemical Industry
Chemical transfer
Acid handling
Solvent transport
Food & Beverage
Milk processing
Beverage production
Edible oil transfer
Pharmaceutical Industry
Clean fluid transfer
Process pipelines
Petroleum Industry
Fuel transfer
Oil handling
Water Treatment
Water distribution
Wastewater systems
Agriculture
Irrigation systems
Fertilizer transfer
Advantages of Stainless Steel Type A Camlock
Excellent corrosion resistance
Hygienic surface finish
Long service life
Resistant to chemicals and saltwater
High-temperature capability
Low maintenance requirements
Typical Product Description
Stainless Steel Camlock Coupling Type A
Material: SS 304 / SS 316
Type: A
Connection: Female Thread × Male Camlock Adapter
Size: 1/2" to 6"
Thread Standard: BSP / NPT
Working Pressure: Up to 250 PSI
Standard: MIL-C-27487 / A-A-59326
Application: Chemical, food processing, petroleum, water treatment, pharmaceutical, and industrial fluid transfer systems.
Maintenance Tips
Inspect threads and sealing surfaces regularly.
Clean after use, especially when handling chemicals.
Replace damaged gaskets immediately.
Avoid exceeding rated pressure and temperature limits.
Store in a dry environment when not in use.
Product Content for Catalog
SS Camlock Coupling Type A is a high-quality quick-connect fitting manufactured from SS304 or SS316 stainless steel. It features a female threaded connection on one end and a male camlock adapter on the other, enabling fast and secure connections in fluid handling systems. The coupling offers excellent corrosion resistance, durability, and leak-free performance, making it suitable for chemical processing, food and beverage, pharmaceutical, petroleum, water treatment, and general industrial applications. Available in sizes ranging from 1/2" to 6" with BSP or NPT threads, it complies with international camlock standards for reliable and efficient operation.
Offered Product
Type A Camlock Coupling
MaterialStainless SteelCoupling TypeType ASize1/2" TO 6"Usage/ApplicationStructure PipePressure Rating16 BarSeal MaterialNBRConnection TypeFemale ThreadThread StandardBSPT / NPTCam MaterialStainless SteelFinishElectroplatedColorSilverShapeRoundFinishingPolished ... Read moreType A Camlock Coupling Supplier In Aurangabad
